WT Models

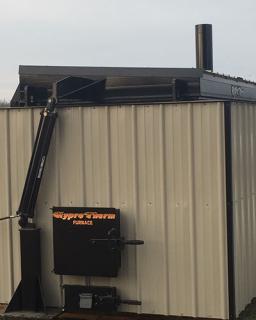

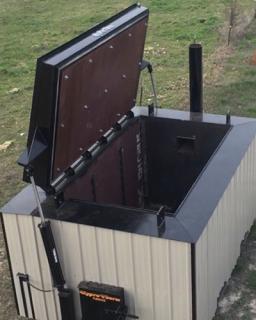

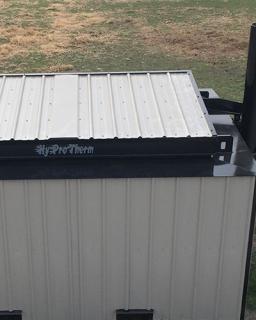

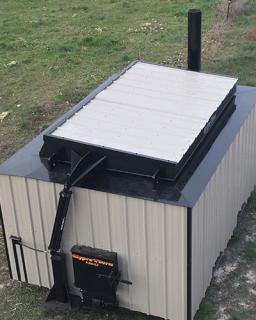

Hyprotherm Top Loading Chest Type Hydronic - WT Models

Hyprotherm TL-433-WT 12/12

Water Capacity: 348 gallon
Water Jacket Thickness: 3/16”
Firebox Capacity: 36 cubic feet
Firebox Dimensions: ½” thick x 4’L x 3’W x 3’H
Overall Dimensions: 100 ½” x 80 ½” x 86”
Shipping Weight: 3,595 lbs Approx
Fuel Door: 4’L x 3’W
Grate System: Round steel (requires 4)
Ash Cleanout: Door only, no removable ash pan
BTUs: 389,934 @ 180 degree
Heatable Area: 9,453 sq ft Approx

Retail: $19,797

Hyprotherm TL-446-WT 6/6

Water Capacity: 357 gallon
Water Jacket Thickness: 3/16”
Firebox Capacity: 96 cubic feet
Firebox Dimensions: ½” thick x 4’L x 4’W x 6’H
Overall Dimensions: 88 ½” x 78 ½” x 122”
Shipping Weight: 5,088 lbs Approx
Fuel Door: 4’L x 4’W
Grate System: Round steel (requires 4)
Ash Cleanout: Door only, no removable ash pan
BTUs: 400,019 @ 180 degree
Heatable Area: 9,697 sq ft Approx

Retail: $27,447

Hyprotherm TL-446-WT 10/10

Water Capacity: 665 gallon
Water Jacket Thickness: 3/16”
Firebox Capacity: 96 cubic feet
Firebox Dimensions: ½” thick x 4’L x 4’W x 6’H
Overall Dimensions: 92 ½” x 90 ½” x 122”
Shipping Weight: 5,385 lbs Approx
Fuel Door: 4’L x 4’W
Grate System: Round steel (requires 4)
Ash Cleanout: Door only, no removable ash pan
BTUs: 745,133 @ 180 degree
Heatable Area: 18,064 sq ft Approx

Retail: $28,297

Hyprotherm TL-454-WT 6/6

Water Capacity: 244 gallon
Water Jacket Thickness: 3/16”
Firebox Capacity: 80 cubic feet
Firebox Dimensions: ½” thick x 4’L x 5’W x 4’H
Overall Dimensions: 88 ½” x 88 ½” x 98”
Shipping Weight: 4,200 lbs Approx
Fuel Door: 4’L x 5’W
Grate System: Round steel (requires 4)
Ash Cleanout: Door only, no removable ash pan
BTUs: 273,402 @ 180 degree
Heatable Area: 6,835 sq ft Approx

Retail: $24,395

Hyprotherm TL-454-WT 12/12

Water Capacity: 580 gallon
Water Jacket Thickness: 3/16”
Firebox Capacity: 80 cubic feet
Firebox Dimensions: ½” thick x 4’L x 5’W x 4’H
Overall Dimensions: 100 ½” x 100 ½” x 98”
Shipping Weight: 4,345 lbs Approx
Fuel Door: 4’L x 5’W
Grate System: Round steel (requires 4)
Ash Cleanout: Door only, no removable ash pan
BTUs: 649,890 @ 180 degree
Heatable Area: 15,755 sq ft Approx

Retail: $25,279

Hyprotherm TL-534-WT 6/6

Water Capacity: 224 gallon
Water Jacket Thickness: 3/16”
Firebox Capacity: 60 cubic feet
Firebox Dimensions: ½” thick x 5’L x 3’W x 4’H
Overall Dimensions: 100 ½” x 68 ½” x 98”
Shipping Weight: 5,215 lbs Approx
Fuel Door: 5’L x 3’W
Grate System: Round steel (requires 5)
Ash Cleanout: Door only, no removable ash pan
BTUs: 250,992 @ 180 degree
Heatable Area: 6,085 sq ft Approx

Retail: $24,297

Hyprotherm TL-534-WT 12/12

Water Capacity: 533 gallon
Water Jacket Thickness: 3/16”
Firebox Capacity: 60 cubic feet
Firebox Dimensions: ½” thick x 5’L x 3’W x 4’H
Overall Dimensions: 112 ½”x 80 ½” x 98”
Shipping Weight: 5,340 lbs Approx
Fuel Door: 5’L x 3’W
Grate System: Round steel (requires 5)
Ash Cleanout: Door only, no removable ash pan
BTUs: 597,227 @ 180 degree
Heatable Area: 14,478 sq ft Approx

Retail: $24,997

Hyprotherm TL-553-WT 6/6

Water Capacity: 303 gallon
Water Jacket Thickness: 3/16”
Firebox Capacity: 75 cubic feet
Firebox Dimensions: ½” thick x 5’L x 5’W x 3’H
Overall Dimensions: 100 ½” x 88 ½” x 86”
Shipping Weight: 5,500 lbs Approx
Fuel Door: 5’L x 5’W
Grate System: Round steel (requires 5)
Ash Cleanout: Door only, no removable ash pan
BTUs: 339,512 @ 180 degree
Heatable Area: 8,231 sq ft Approx

Retail: $26,497

Hyprotherm TL-553-WT 12/12

Water Capacity: 447 gallon
Water Jacket Thickness: 3/16”
Firebox Capacity: 75 cubic feet
Firebox Dimensions: ½” thick x 5’L x 5’W x 3’H
Overall Dimensions: 112 ½”x 100 ½” x 86”
Shipping Weight: 5,900 lbs Approx
Fuel Door: 5’L x 5’W
Grate System: Round steel (requires 5)
Ash Cleanout: Door only, no removable ash pan
BTUs: 500,864 @ 180 degree
Heatable Area: 12,142 sq ft Approx

Retail: $27,467

Hyprotherm TL-555-WT 6/6

Water Capacity: 344 gallon
Water Jacket Thickness: 3/16”
Firebox Capacity: 125 cubic feet
Firebox Dimensions: ½” thick x 5’L x 5’W x 5’H
Overall Dimensions: 100 ½” x 88 ½” x 110”
Shipping Weight: 6,745 lbs Approx
Fuel Door: 5’L x 5’W
Grate System: Round steel (requires 5)
Ash Cleanout: Door only, no removable ash pan
BTUs: 385,452 @ 180 degree
Heatable Area: 9,344 sq ft Approx

Retail: $32,647

Hyprotherm TL-555-WT 12/12

Water Capacity: 806 gallon
Water Jacket Thickness: 3/16”
Firebox Capacity: 125 cubic feet
Firebox Dimensions: ½” thick x 5’L x 5’W x 5’H
Overall Dimensions: 112 ½” x 100 ½” x 110”
Shipping Weight: 7,025 lbs Approx
Fuel Door: 5’L x 5’W
Grate System: Round steel (requires 5)
Ash Cleanout: Door only, no removable ash pan
BTUs: 903,123 @ 180 degree
Heatable Area: 21,894 sq ft Approx

Retail: $33,697

Hyprotherm TL-556-WT 6/6

Water Capacity: 426 gallon
Water Jacket Thickness: 3/16”
Firebox Capacity: 150 cubic feet
Firebox Dimensions: ½” thick x 5’L x 5’W x 6’H
Overall Dimensions: 100 ½” x 88 ½” x 122”
Shipping Weight: 7,372 lbs Approx
Fuel Door: 5’L x 5’W
Grate System: Round steel (requires 5)
Ash Cleanout: Door only, no removable ash pan
BTUs: 477,333 @ 180 degree
Heatable Area: 11,572 sq ft Approx

Retail: $35,897

Hyprotherm TL-556-WT 12/12

Water Capacity: 985 gallon
Water Jacket Thickness: 3/16”
Firebox Capacity: 150 cubic feet
Firebox Dimensions: ½” thick x 5’L x 5’W x 6’H
Overall Dimensions: 112 ½” x 100 ½” x 122”
Shipping Weight: 7,541 lbs Approx
Fuel Door: 5’L x 5’W
Grate System: Round steel (requires 5)
Ash Cleanout: Door only, no removable ash pan
BTUs: 1,103,693 @ 180 degree
Heatable Area: 26,592 sq ft Approx

Retail: $37,297

Hyprotherm TL-633-WT 6/6

Water Capacity: 173 gallon
Water Jacket Thickness: 3/16”
Firebox Capacity: 54 cubic feet
Firebox Dimensions: ½” thick x 6’L x 3’W x 3’H
Overall Dimensions: 112 ½” x 68 ½” x 86”
Shipping Weight: 5,997 lbs Approx
Fuel Door: 6’L x 3’W
Grate System: Round steel (requires 6)
Ash Cleanout: Door only, no removable ash pan
BTUs: 193,847 @ 180 degree
Heatable Area: 4,699 sq ft Approx

Retail: $22,575

Hyprotherm TL-633-WT 12/12

Water Capacity: 419 gallon
Water Jacket Thickness: 3/16”
Firebox Capacity: 54 cubic feet
Firebox Dimensions: ½” thick x 6’L x 3’W x 3’H
Overall Dimensions: 124 ½” x 80 ½” x 86”
Shipping Weight: 6,137 lbs Approx
Fuel Door: 6’L x 3’W
Grate System: Round steel (requires 6)
Ash Cleanout: Door only, no removable ash pan
BTUs: 469,490 @ 180 degree
Heatable Area: 11,382 sq ft Approx

Retail: $23,350

Hyprotherm TL-634-WT 6/6

Water Capacity: 247 gallon
Water Jacket Thickness: 3/16”
Firebox Capacity: 72 cubic feet
Firebox Dimensions: ½” thick x 6’L x 3’W x 4’H
Overall Dimensions: 112 ½” x 68 ½” x 98”
Shipping Weight: 6,414 lbs Approx
Fuel Door: 6’L x 3’W
Grate System: Round steel (requires 6)
Ash Cleanout: Door only, no removable ash pan
BTUs: 276,774 @ 180 degree
Heatable Area: 6,919 sq ft Approx

Retail: $25,797

Hyprotherm TL-634-WT 12/12

Water Capacity: 583 gallon
Water Jacket Thickness: 3/16”
Firebox Capacity: 72 cubic feet
Firebox Dimensions: ½” thick x 6’L x 3’W x 4’H
Overall Dimensions: 124 ½” x 80 ½” x 98”
Shipping Weight: 6,659 lbs Approx
Fuel Door: 6’L x 3’W
Grate System: Round steel (requires 6)
Ash Cleanout: Door only, no removable ash pan
BTUs: 653,252 @ 180 degree
Heatable Area: 15,836 sq ft Approx

Retail: $26,945

Hyprotherm TL-644-WT 6/6

Water Capacity: 404 gallon
Water Jacket Thickness: 3/16”
Firebox Capacity: 96 cubic feet
Firebox Dimensions: ½” thick x 6’L x 4’W x 4’H
Overall Dimensions: 112 ½” x 78 ½” x 98”
Shipping Weight: 7,085 lbs Approx
Fuel Door: 6’L x 4’W
Grate System: Round steel (requires 6)
Ash Cleanout: Door only, no removable ash pan
BTUs: 452,682 @ 180 degree
Heatable Area: 10,974 sq ft Approx

Retail: $28,997

Hyprotherm TL-644-WT 12/12

Water Capacity: 628 gallon
Water Jacket Thickness: 3/16”
Firebox Capacity: 96 cubic feet
Firebox Dimensions: ½” thick x 6’L x 4’W x 4’H
Overall Dimensions: 124 ½” x 90 ½” x 98”
Shipping Weight: 7,360 lbs Approx
Fuel Door: 6’L x 4’W
Grate System: Round steel (requires 6)
Ash Cleanout: Door only, no removable ash pan
BTUs: 703,674 @ 180 degree
Heatable Area: 17,059 sq ft Approx

Retail: $29,997

Hyprotherm TL-1350-WT 6/6

Water Capacity: 491 gallon
Water Jacket Thickness: 3/16”
Firebox Capacity: 216 cubic feet
Firebox Dimensions: ½” thick x 6’L x 6’W x 6’H
Overall Dimensions: 112 ½” x 98 ½” x 122”
Shipping Weight: 10,177 lbs Approx
Fuel Door: 6’L x 6’W
Grate System: Round steel (requires 6)
Ash Cleanout: Door only, no removable ash pan
BTUs: 550,166 @ 180 degree
Heatable Area: 13,337 sq ft Approx

Retail: $41,567

Hyprotherm TL-1350-WT 12/6

Water Capacity: 897 gallon
Water Jacket Thickness: 3/16”
Firebox Capacity: 216 cubic feet
Firebox Dimensions: ½” thick x 6’L x 6’W x 6’H
Overall Dimensions: 124 ½” x 98 ½” x 122”
Shipping Weight: 10,545 lbs Approx
Fuel Door: 6’L x 6’W
Grate System: Round steel (requires 6)
Ash Cleanout: Door only, no removable ash pan
BTUs: 1,005,089 @ 180 degree
Heatable Area: 24,366 sq ft Approx

Retail: $42,997

Hyprotherm TL-844-WT 6/6

Water Capacity: 264 gallon
Water Jacket Thickness: 3/16”
Firebox Capacity: 128 cubic feet
Firebox Dimensions: ½” thick x 8’L x 4’W x 4’H
Overall Dimensions: 132” x 78 ½” x 98”
Shipping Weight: 7,980 lbs Approx
Fuel Door: 8’L x 4’W
Grate System: Round steel (requires 8)
Ash Cleanout: Door only, no removable ash pan
BTUs: 295,812 @ 180 degree
Heatable Area: 7,171 sq ft Approx

Retail: $34,195

Hyprotherm TL-844-WT 12/12

Water Capacity: 726 gallon
Water Jacket Thickness: 3/16”
Firebox Capacity: 128 cubic feet
Firebox Dimensions: ½” thick x 8’L x 4’W x 4’H
Overall Dimensions: 144” x 90 ½” x 98”
Shipping Weight: 8,300 lbs Approx
Fuel Door: 8’L x 4’W
Grate System: Round steel (requires 8)
Ash Cleanout: Door only, no removable ash pan
BTUs: 813,483 @ 180 degree
Heatable Area: 19,720 sq ft Approx

Retail: $35,397

Hyprotherm TL-854-WT 6/6

Water Capacity: 318 gallon
Water Jacket Thickness: 3/16”
Firebox Capacity: 160 cubic feet
Firebox Dimensions: ½” thick x 8’L x 5’W x 4’H
Overall Dimensions: 132” x 88 ½” x 98”
Shipping Weight: 8,464 lbs Approx
Fuel Door: 8’L x 5’W
Grate System: Round steel (requires 8)
Ash Cleanout: Door only, no removable ash pan
BTUs: 356,319 @ 180 degree
Heatable Area: 8,638 sq ft Approx

Retail: $37,140

Hyprotherm TL-854-WT 12/12

Water Capacity: 767 gallon
Water Jacket Thickness: 3/16”
Firebox Capacity: 160 cubic feet
Firebox Dimensions: ½” thick x 8’L x 5’W x 4’H
Overall Dimensions: 144” x 100 ½” x 98”
Shipping Weight: 8,648 lbs Approx
Fuel Door: 8’L x 5’W
Grate System: Round steel (requires 8)
Ash Cleanout: Door only, no removable ash pan
BTUs: 859,424 @ 180 degree
Heatable Area: 20,835 sq ft Approx

Retail: $36,875

Hyprotherm TL-934-WT 6/6

Water Capacity: 314 gallon
Water Jacket Thickness: 3/16”
Firebox Capacity: 108 cubic feet
Firebox Dimensions: ½” thick x 9’L x 3’W x 4’H
Overall Dimensions: 148 ½” 68 ½” x 98”
Shipping Weight: 9,397 lbs Approx
Fuel Door: 9’L x 3’W
Grate System: Round steel (requires 9)
Ash Cleanout: Door only, no removable ash pan
BTUs: 351,837 @ 180 degree
Heatable Area: 8,529 sq ft Approx

Retail: $33,497

Hyprotherm TL-934-WT 12/12

Water Capacity: 735 gallon
Water Jacket Thickness: 3/16”
Firebox Capacity: 108 cubic feet
Firebox Dimensions: ½” thick x 9’L x 3’W x 4’H
Overall Dimensions: 160 ½” x 80 ½” x 98”
Shipping Weight: 9,700 lbs Approx
Fuel Door: 9’L x 3’W
Grate System: Round steel (requires 9)
Ash Cleanout: Door only, no removable ash pan
BTUs: 823,568 @ 180 degree
Heatable Area: 20,014 sq ft Approx

Retail: $34,667

Hyprotherm TL-944-WT 6/6

Water Capacity: 386 gallon
Water Jacket Thickness: 3/16”
Firebox Capacity: 144 cubic feet
Firebox Dimensions: ½” thick x 9’L x 4’W x 4’H
Overall Dimensions: 148 ½” x 78 ½” x 98”
Shipping Weight: 10,354 lbs Approx
Fuel Door: 9’L x 4’W
Grate System: Round steel (requires 9)
Ash Cleanout: Door only, no removable ash pan
BTUs: 432,513 @ 180 degree
Heatable Area: 10,485 sq ft Approx

Retail: $36,597

Hyprotherm TL-944-WT 12/12

Water Capacity: 774 gallon
Water Jacket Thickness: 3/16”
Firebox Capacity: 144 cubic feet
Firebox Dimensions: ½” thick x 9’L x 4’W x 4’H
Overall Dimensions: 160 ½” x 90 ½” x 98”
Shipping Weight: 10,690 lbs Approx
Fuel Door: 9’L x 4’W
Grate System: Round steel (requires 9)
Ash Cleanout: Door only, no removable ash pan
BTUs: 867,267 @ 180 degree
Heatable Area: 21,025 sq ft Approx

Retail: $37,740

Hyprotherm TL-955-WT 6/6

Water Capacity: 449 gallon
Water Jacket Thickness: 3/16”
Firebox Capacity: 225 cubic feet
Firebox Dimensions: ½” thick x 9’L x 5’W x 5’H
Overall Dimensions: 148 ½” x 88 ½” x 110”
Shipping Weight: 11,715 lbs Approx
Fuel Door: 9’L x 5’W
Grate System: Round steel (requires 9)
Ash Cleanout: Door only, no removable ash pan
BTUs: 503,105 @ 180 degree
Heatable Area: 12,186 sq ft Approx

Retail: $42,250

Hyprotherm TL-955-WT 12/12

Water Capacity: 1,053 gallon
Water Jacket Thickness: 3/16”
Firebox Capacity: 225 cubic feet
Firebox Dimensions: ½” thick x 9’L x 5’W x 5’H
Overall Dimensions: 160 ½” x 100 ½” x 110”
Shipping Weight: 12,134 lbs Approx
Fuel Door: 9’L x 5’W
Grate System: Round steel (requires 9)
Ash Cleanout: Door only, no removable ash pan
BTUs: 1,179,887 @ 180 degree
Heatable Area: 28,603 sq ft Approx

Retail: $43,875

Hyprotherm TL-955-WT 14/12

Water Capacity: 1,137 gallon
Water Jacket Thickness: 3/16”
Firebox Capacity: 225 cubic feet
Firebox Dimensions: ½” thick x 9’L x 5’W x 5’H
Overall Dimensions: 164 ½” 100 ½” x 110”
Shipping Weight: 12,225 lbs Approx
Fuel Door: 9’L x 5’W
Grate System: Round steel (requires 9)
Ash Cleanout: Door only, no removable ash pan
BTUs: 1,442,084 @ 180 degree
Heatable Area: 34,860 sq ft Approx

Retail: $45,475

Hyprotherm TL-1044-WT 6/6

Water Capacity: 346 gallon
Water Jacket Thickness: 3/16”
Firebox Capacity: 160 cubic feet
Firebox Dimensions: ½” thick x 10’L x 4’W x 4’H
Overall Dimensions: 160 ½” x 78 ½” x 98”
Shipping Weight: 10,124 lbs Approx
Fuel Door: 10’L x 4’W
Grate System: Round steel (requires 10)
Ash Cleanout: Door only, no removable ash pan
BTUs: 387,693 @ 180 degree
Heatable Area: 9,399 sq ft Approx

Retail: $39,450

Hyprotherm TL-1044-WT 12/12

Water Capacity: 823 gallon
Water Jacket Thickness: 3/16”
Firebox Capacity: 160 cubic feet
Firebox Dimensions: ½” thick x 10’L x 4’W x 4’H
Overall Dimensions: 172 ½” 90 ½” x 98”
Shipping Weight: 10,495 lbs Approx
Fuel Door: 10’L x 4’W
Grate System: Round steel (requires 10)
Ash Cleanout: Door only, no removable ash pan
BTUs: 922,172 @ 180 degree
Heatable Area: 22,356 sq ft Approx

Retail: $40,675

Hyprotherm TL-1054-WT 6/6

Water Capacity: 355 gallon
Water Jacket Thickness: 3/16”
Firebox Capacity: 200 cubic feet
Firebox Dimensions: ½” thick x 10’L x 5’W x 4’H
Overall Dimensions: 160 ½” x 88 ½” x 98”
Shipping Weight: 10,665 lbs Approx
Fuel Door: 10’L x 5’W
Grate System: Round steel (requires 10)
Ash Cleanout: Door only, no removable ash pan
BTUs: 397,778 @ 180 degree
Heatable Area: 9,643 sq ft Approx

Retail: $42,425

Hyprotherm TL-1054-WT 12/12

Water Capacity: 860 gallon
Water Jacket Thickness: 3/16”
Firebox Capacity: 200 cubic feet
Firebox Dimensions: ½” thick x 10’L x 5’W x 4’H
Overall Dimensions: 172 ½” x 100 ½”x 98”
Shipping Weight: 10,875 lbs Approx
Fuel Door: 10’L x 5’W
Grate System: Round steel (requires 10)
Ash Cleanout: Door only, no removable ash pan
BTUs: 963,630 @ 180 degree
Heatable Area: 22,361 sq ft Approx

Retail: $43,687

Hyprotherm TL-1055-WT 6/6

Water Capacity: 475 gallon
Water Jacket Thickness: 3/16”
Firebox Capacity: 250 cubic feet
Firebox Dimensions: ½” thick x 10’L x 5’W x 5’H
Overall Dimensions: 160 ½” x 88.5”x 110”
Shipping Weight: 11,337 lbs Approx
Fuel Door: 10’L x 5’W
Grate System: Round steel (requires 10)
Ash Cleanout: Door only, no removable ash pan
BTUs: 532,238 @ 180 degree
Heatable Area: 12,903 sq ft Approx

Retail: $45,125

Hyprotherm TL-1055-WT 12/12

Water Capacity: 1,115 gallon
Water Jacket Thickness: 3/16”
Firebox Capacity: 250 cubic feet
Firebox Dimensions: ½” thick x 10’L x 5’W x 5’H
Overall Dimensions: 172 ½” x 100 ½” x 110”
Shipping Weight: 11,787 lbs Approx
Fuel Door: 10’L x 5’W
Grate System: Round steel (requires 10)
Ash Cleanout: Door only, no removable ash pan
BTUs: 1,249,358 @ 180 degree
Heatable Area: 30,287 sq ft Approx

Retail: $46,747

Hyprotherm TL-1056-WT 6/6

Water Capacity: 598 gallon
Water Jacket Thickness: 3/16”
Firebox Capacity: 300 cubic feet
Firebox Dimensions: ½” thick x 10’L x 5’W x 6’H
Overall Dimensions: 160 ½” x 88 ½” x 122”
Shipping Weight: 12,257 lbs Approx
Fuel Door: 10’L x 5’W
Grate System: Round steel (requires 10)
Ash Cleanout: Door only, no removable ash pan
BTUs: 670,059 @ 180 degree
Heatable Area: 16,751 sq ft Approx

Retail: $48,197

Hyprotherm TL-1056-WT 12/12

Water Capacity: 1,369 gallon
Water Jacket Thickness: 3/16”
Firebox Capacity: 300 cubic feet
Firebox Dimensions: ½” thick x 10’L x 5’W x 6’H
Overall Dimensions: 172 ½” x 100 ½” x 122”
Shipping Weight: 12,700 lbs Approx
Fuel Door: 10’L x 5’W
Grate System: Round steel (requires 10)
Ash Cleanout: Door only, no removable ash pan
BTUs: 1,533,965 @ 180 degree
Heatable Area: 38,187 sq ft Approx

Retail: $49,745

Hyprotherm TL-1256-WT 6/6

Water Capacity: 667 gallon
Water Jacket Thickness: 3/16”
Firebox Capacity: 360 cubic feet
Firebox Dimensions: ½” thick x 12’L x 5’W x 6’H
Overall Dimensions: 184 ½” x 88 ½” x 122”
Shipping Weight: 13,595 lbs Approx
Fuel Door: 12’L x 5’W
Grate System: Round steel (requires 12)
Ash Cleanout: Door only, no removable ash pan
BTUs: 747,374 @ 180 degree
Heatable Area: 18,118 sq ft Approx

Retail: $52,297

Hyprotherm TL-1256-WT 12/12

Water Capacity: 1,527 gallon
Water Jacket Thickness: 3/16”
Firebox Capacity: 360 cubic feet
Firebox Dimensions: ½” thick x 12’L x 5’W x 6’H
Overall Dimensions: 196 ½” x 100 ½” x 122”
Shipping Weight: 14,025 lbs Approx
Fuel Door: 12’L x 5’W
Grate System: Round steel (requires 12)
Ash Cleanout: Door only, no removable ash pan
BTUs: 1,711,004 @ 180 degree
Heatable Area: 41,479 sq ft Approx

Retail: $54,175

Hyprotherm TL-1456-WT 6/6

Water Capacity: 733 gallon
Water Jacket Thickness: 3/16”
Firebox Capacity: 420 cubic feet
Firebox Dimensions: ½” thick x 14’L x 5’W x 6’H
Overall Dimensions: 220 ½” x 100 ½” x 122”
Shipping Weight: lbs Approx
Fuel Door: 14’L x 5’W
Grate System: Round steel (requires 14)
Ash Cleanout: Door only, no removable ash pan
BTUs: 821,327 @ 180 degree
Heatable Area: 20,533 sq ft Approx
$74,087

Hyprotherm TL-1456-WT 6/6
With 352 Gallons of Water in Lid

Water Capacity: 1,085 gallon
Water Jacket Thickness: 3/16”
Firebox Capacity: 420 cubic feet
Firebox Dimensions: ½” thick x 14’L x 5’W x 6’H
Overall Dimensions: 208 ½” x 88 ½” x 122”
Shipping Weight: lbs Approx
Fuel Door: 14’L x 5’W
Grate System: Round steel (requires 14)
Ash Cleanout: Door only, no removable ash pan
BTUs: 1,215,743 @ 180 degree
Heatable Area: 30,394 sq ft Approx
$79,545

Hyprotherm TL-1456-WT 12/12

Water Capacity: 1,675 gallon
Water Jacket Thickness: 3/16”
Firebox Capacity: 420 cubic feet
Firebox Dimensions: ½” thick x 14’L x 5’W x 6’H
Overall Dimensions: 220 ½” x 100 ½” x 122”
Shipping Weight: lbs Approx
Fuel Door: 14’L x 5’W
Grate System: Round steel (requires 14)
Ash Cleanout: Door only, no removable ash pan
BTUs: 1,876,838 @ 180 degree
Heatable Area: 46,920 sq ft Approx

Retail: $76,050

Hyprotherm TL-1456-WT 12/12
With 352 Gallons of Water in Lid

Water Capacity: 2,027 gallon
Water Jacket Thickness: 3/16”
Firebox Capacity: 420 cubic feet
Firebox Dimensions: ½” thick x 14’L x 5’W x 6’H
Overall Dimensions: 220 ½” x 100 ½” x 122”
Shipping Weight: lbs Approx
Fuel Door: 14’L x 5’W
Grate System: Round steel (requires 14)
Ash Cleanout: Door only, no removable ash pan
BTUs: 2,271,254 @ 180 degree
Heatable Area: 56,781 sq ft Approx
$81,395
